MINIDIST PLUS type RTBP D2892 1 to 3L rapid TBP distillation



quote request

Description

FEATURES

ASTM D2892 and ASTM D5236 Distillation for small sample size 250 to 1600mL
Fully automatic apparatus
No operator intervention from IBP (LPG) debutanisation to FBP 375/400C -700/750F AET
Real-time curves and synoptic display on color LCD
Automatic, variable speed vacuum lowering and regulation
Automatic distillation rate control
Automatic, 8 position collector
Multiple fractions at atmospheric and vacuum pressure
Automatic sample cleaning
Run in °C or °F, mmHg or mBar
Extensive library of distillation programs
Data storage of unlimited distillation runs with USB key and/or LIMS transfer
Built-in Ethernet interface
Power supply 220V mono 50/60Hz
Compact closed cabinet less than 200cm tall, 120cm wide and 80cm deep
Optional potstill distillation D5236 kit to run sample up to 575/600C 1050/1100 F AET with a 500mL flask

DESCRIPTION

The MINIDIST PLUS type R-TBP is specially designed to perform ASTM D2892 TBP and D5236 Potstill distillation on small sample charges, up to 8 large preparation fractions from LPG to 375 C AET in TBP mode and 6 fractions in Potstill mode. All within 8 to 10 hours.
Compatible for any kind of distillation: petroleum, petrochemical products, fractions such as gasoline, diesel, kerosene, lubricant, crude residues, LVGO, HVGO, biofuels, bio-oils, etc.

Fully automatic distillation unit in accordance with ASTM 2892 and D5236 methods for distillation of crude oils, cuts or residues with automatic procedure from debutanization to reduced pressure without operator intervention from sample loading to collecting the final fractions.
Unit includes a D2892 column with wiremesh multiknit packing and a 2L glass boiling flask. Special column and flask sizes are available on request (500mL and 1000mL).
This unit facilitates all types of discontinuous distillation of chemical and organic components for boiling temperatures up to 200°C/392°F under atmospheric pressure, as well as vacuum down to 1 mmHg, which corresponds to an atmospheric equivalent temperature (AET) of 375-400°C/707-752°F.
The complete TBP D2892 distillation can be performed from debutanization stage to Final Boiling Point (FBP), within about 8 hours. All sequences are chained automatically. When the next step involves a pressure change, the sample charge flask is automatically cooled to a preset temperature and returned to atmospheric pressure. The vacuum then lowers to the next step toward FBP. The fractions can be prepared by temperature and/or % volume set points.
If the optional D5236 distillation kit is available, a distillation of the residue is generally run under reduced pressure 1 mmHg, or lower, to prepare fractions up to 600C AET in temperature or volume.

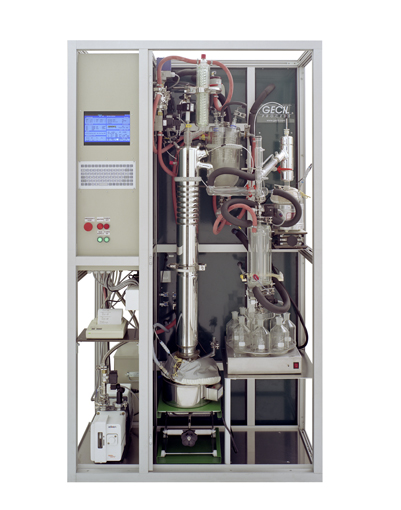

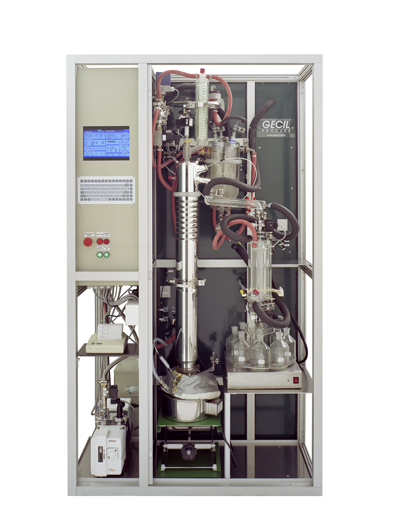

The MINIDIST PLUS R-TBP process cabinet is a closed cabinet with safety doors for easy access.

BENEFITS

automatic, ASTM D2892, Rapid TBP distillation units with GECDIST V7 software

Up to 250 TBP analysis per year

No Need of an external PC to operate all functions of GECDIST V7 software

A TBP analysis up to 350/375 C AET in less than 8 to 10 hours











>
