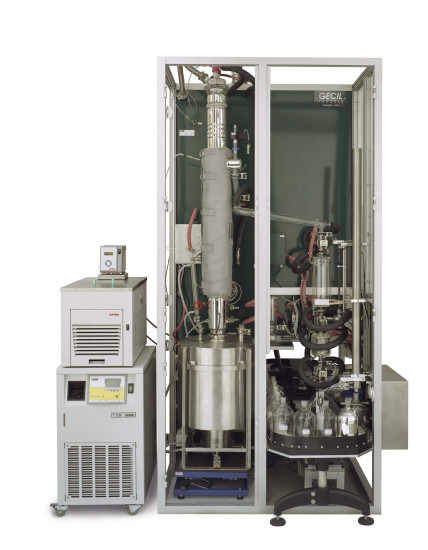

MINIDIST PLUS Type MVD D2892 fully automatic 2L to 200L

FEATURES

Fully automatic apparatus ASTM D2892
Real-time curves and synoptic display on color LCD
Automatic, variable speed vacuum lowering and regulation
Automatic distillation rate control
Automatic IBP and FBP detections
Automatic, 30 position fraction collector with up to 40 receivers
Multiple fractions at atmospheric and vacuum pressure
Automatic sample cleaning
Run in °C or °F, mmHg or mBar
Extensive library of distillation programs
Data storage of unlimited distillation runs with USB key and/or to LIMS trasnfer
Built-in Ethernet interface
Printer included

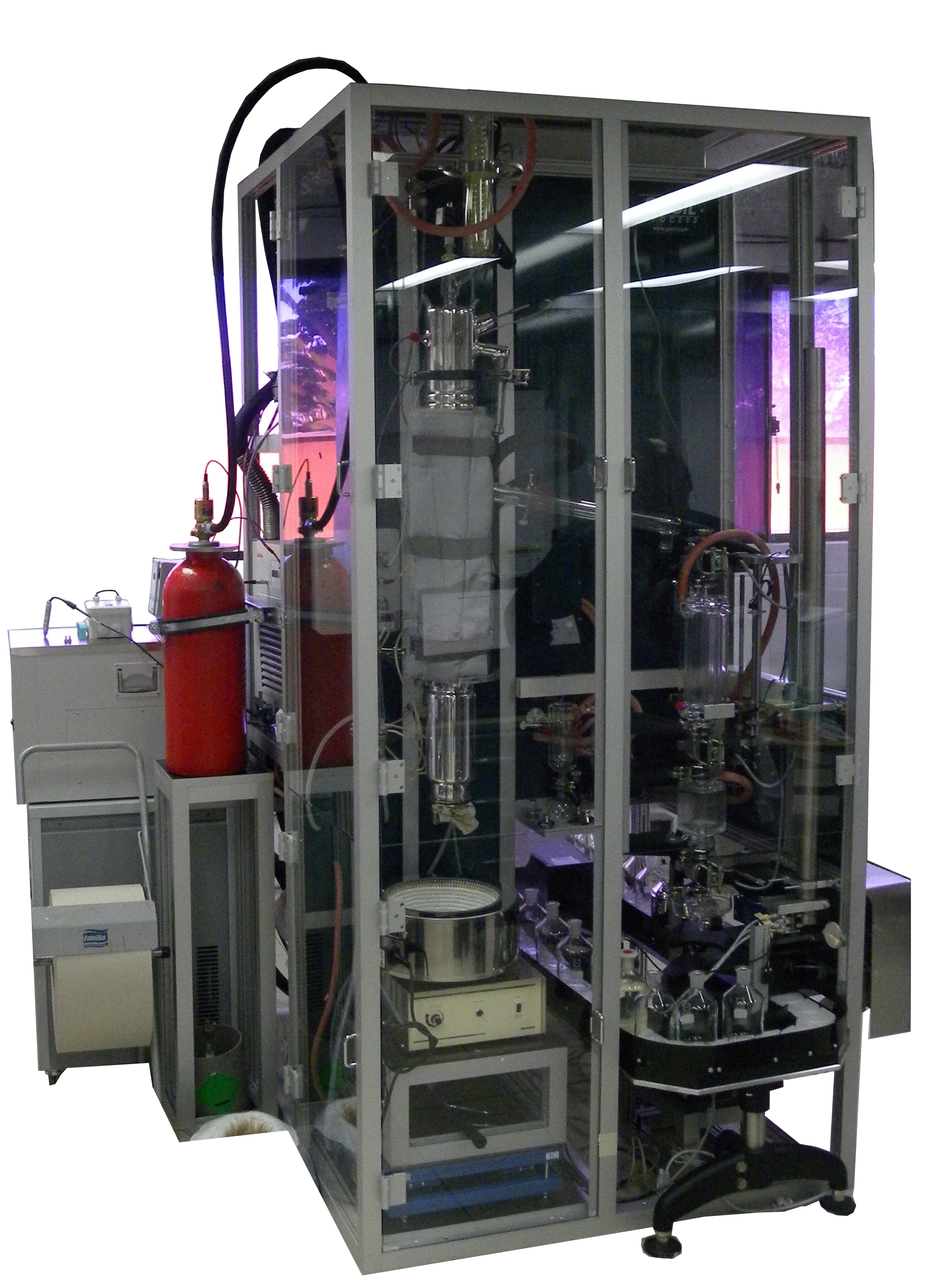

MIN+ Type MVD 2L to 30L

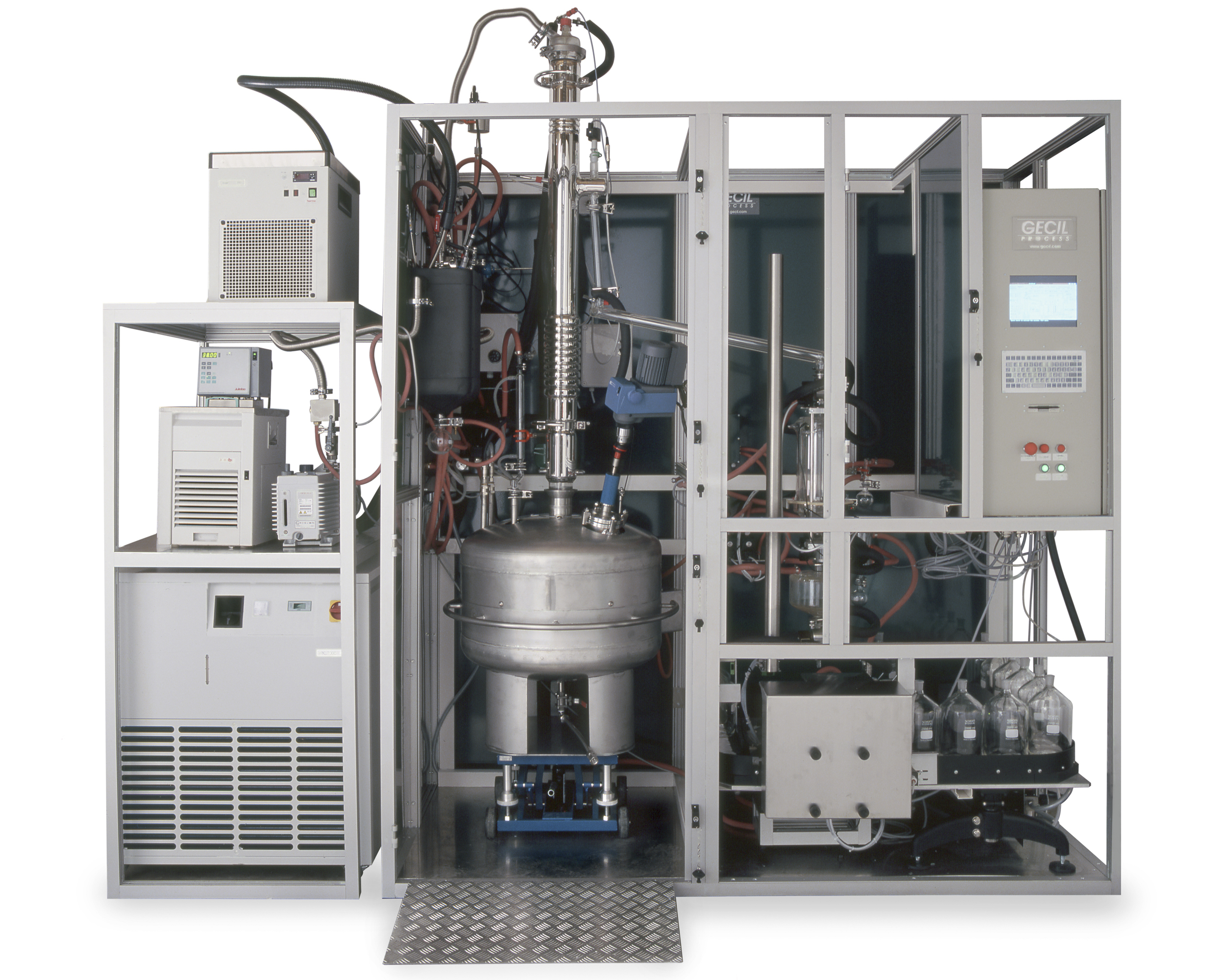

MIN+ Type MVD 50L to 200L
Multiple options available

DESCRIPTION

MINIDIST PLUS type MVD (Mass, Volume, Density) is the result of over 40 years of research & development with several major petroleum research centers. With mono or multi-process configurations, the innovative ASTM D2892 TBP distillation apparatus hails from our extensive crude oil evaluation distillation product line.
The integration of a balance and volume follower system allows real-time weight and volume monitoring for each fraction. Density is calculated and reported, automatically, with +/- 0.001 accuracy. Density of each fraction may also be measured off line with higher accuracy, then input into the final report.

Our fully automatic distillation unit, in accordance with ASTM 2892, distills crude oils  or cuts with automatic procedure from debutanisation to reduced pressure or distillation start to finish. This unit includes a D2892 column and stainless steel boiling flask with capacity 2 to 200 L capacity. Special column and flask sizes are available upon request.

This unit facilitates all types of discontinuous distillation of chemical and organic components for boiling temperatures up to 200°C/392°F under atmospheric pressure, as well as, vacuum down to 1 mmHg ( the atmospheric equivalent temperature, AET, of 400-452°C/752-845°F). The complete TBP D2892 distillation can be performed from debutanisation to Final Boiling Point (FBP)within 15 to 18 hours. All sequences are chained automatically. When the next step involves a pressure change, the sample charge flask is automatically cooled to a preset temperature and returned to atmospheric pressure. The operator may remove distillate receivers at any time, once FBP is reached under vacuum or during distillation. The fractions can be measured by temperature and/or % volume set points.

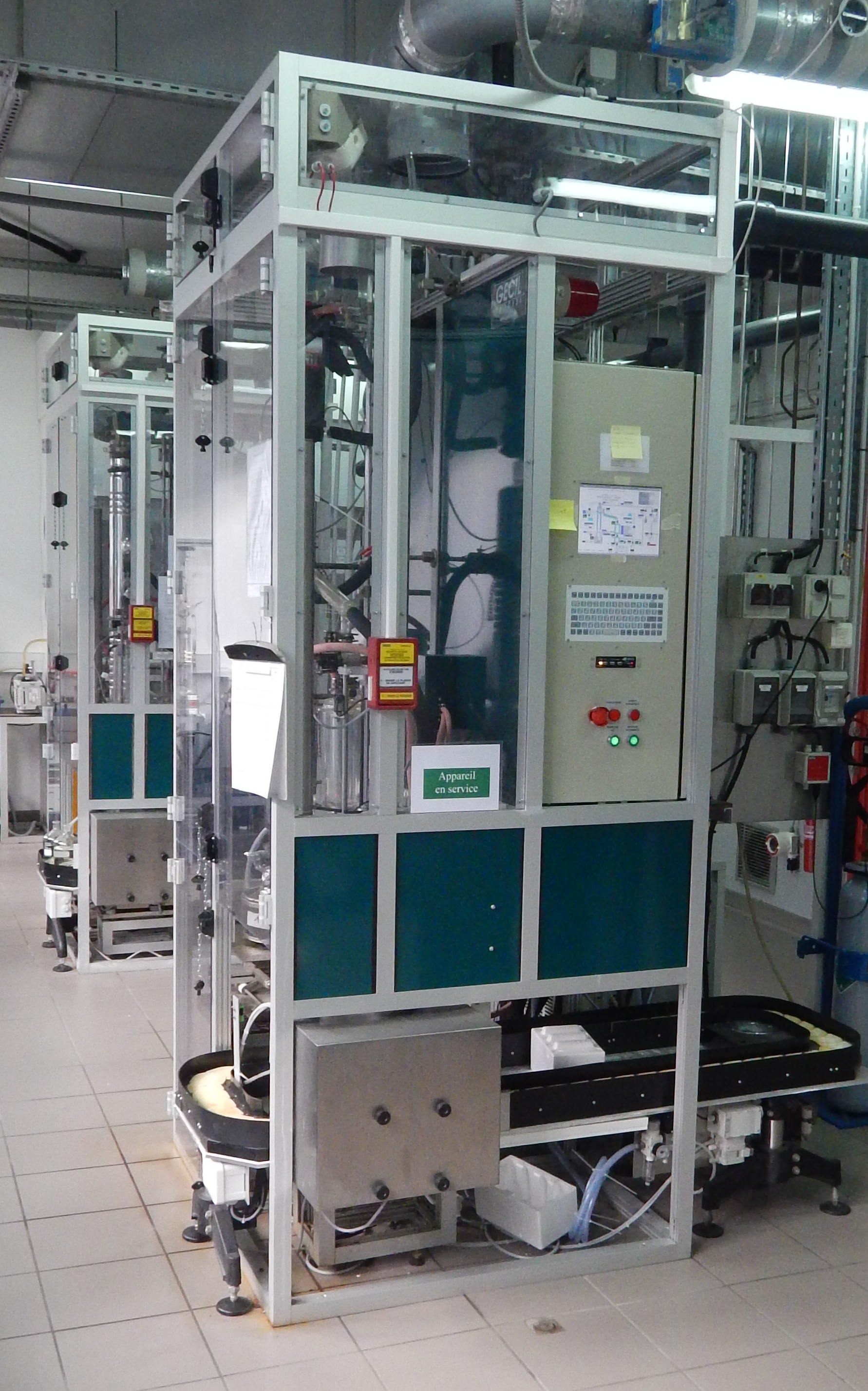

The MINIDIST PLUS type MVD process cabinet is a closed cabinet with safety doors for easy  access and maintenance. Version V7.0 includes includes a built-in Linux industrial controller with interface process boards, color LCD display, industrial alphanumeric keyboard, and mouse. There is no longer a need for an external Windows PC supervisor.

BENEFITS

automatic, ASTM D2892, MVD distillation units with 2L to 200L capacity

No operator intervention from start to FBP 400 C AET

Up to 250 TBP analysis per year

Easy operation in local-mode and more versatile use in remote supervisor mode

No need for an  external PC to operate all functions of GECDIST V7 Software
