Description
FEATURES
Fully automatic batch discontinuous distillation apparatus
Real-time curves and synoptic display on color LCD
Automatic, variable speed vacuum lowering and regulation
Automatic distillation rate control
Automatic IBP and FBP detections
Automatic 12 position fraction collector
Multiple fractions at atmospheric and vacuum pressure
Automatic sample cleaning
Run in °C or °F, mmHg or mBar
Extensive library of distillation programs
Data storage of unlimited distillation runs with USB key and/or LIMS transfer
Built-in Ethernet interface
Printer included

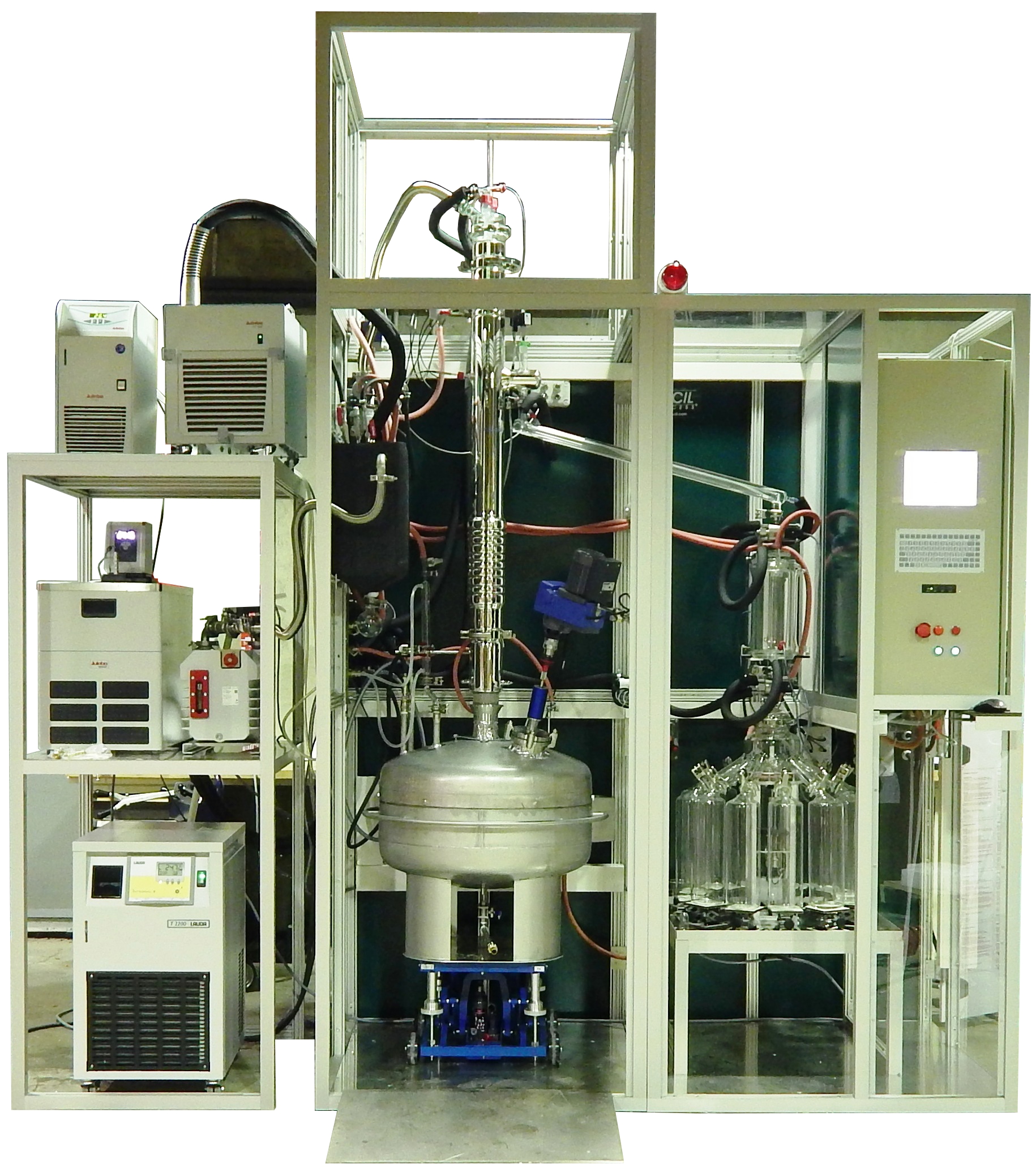

MIN+ Type F 50L to 200L
Multiple options available
DESCRIPTION
Our fully automatic batch distillation unit distills any kind of samples with automatic procedure from atmo. to reduced pressure, with operation intervention (approx. 5min) only to remove prepared fractions at the end of each 3-4 hour sequence (if more than 12 fractions need to be prepared). Unit includes a column in accordance with customer application and a stainless steel boiling flask with capacity 50L to 200L capacity. Special column and flask sizes available on request.
This unit facilitates all types of discontinuous distillation of chemical and organic components for boiling temperatures up to 200°C/392°F under atmospheric pressure, as well as, vacuum down to 1 mmHg (the atmospheric equivalent temperature, AET, of 400-452°C/752-845°F).
The complete batch distillation can be performed from the IBP to Final Boiling Point (FBP) within 5 to 18 hours upon the application and type of sample. All sequences are chained automatically. When the next step involves a pressure change, the sample charge flask is automatically cooled to a preset temperature and returned to atmospheric pressure. The operator may replace distillate receivers at any time, with empty ones before approving the continuation of the next step toward FBP. The fractions can be measured by temperature and/or % volume set points.
The MINIDIST PLUS type F process cabinet is a closed cabinet with safety doors for easy access and maintenance. Version V7.0 includes a built-in Linux industrial controller with interface process boards, color LCD display, industrial alphanumeric keyboard, and mouse. There is no longer a need for an external Windows PC supervisor.
BENEFITS
Automatic, batch distillation units type F with 50L to 200L capacity
No operator intervention from start to FBP 400 C AET
Up to 125 or more analysis per year
Easy operation in local-mode
No need for an external PC to operate all functions of GECDIST V7 Software
