MINIDIST PLUS Type F V7 D2892 fully automatic 50 to 200L



quote request

Description

FEATURES

Fully automatic apparatus ASTM D2892 TBP
Real-time curves and synoptic display on color LCD
Automatic, variable speed vacuum lowering and regulation
Automatic distillation rate control
Automatic IBP and FBP detections
Automatic 12 position fraction collector
Multiple fractions at atmospheric and vacuum pressure
Automatic sample cleaning
Run in °C or °F, mmHg or mBar
Extensive library of distillation programs
Data storage of unlimited distillation runs with USB key and/or LIMS transfer
Built-in Ethernet interface
Printer included
Flask capacity from 50L to 200L
Multiple options available


DESCRIPTION

Our fully automatic distillation unit in accordance with ASTM D2892 method, distills crude oils or cuts with automatic procedure from debutanization to reduced pressure, with operation intervention (approx. 5min) only to remove prepared fractions at the end of each 3-4 hour sequence (if more than 12 fractions need to be prepared). Unit includes a D2892 column and a stainless steel boiling flask with capacity 50L to 200L capacity. Special column and flask sizes available on request.

    This unit facilitates all types of discontinuous distillation of chemical and organic components for boiling temperatures up to 200°C/392°F under atmospheric pressure, as well as, vacuum down to 1 mmHg (the atmospheric equivalent temperature, AET, of 400-452°C/752-845°F).

    The complete TBP D2892 distillation can be performed from the debutanization to Final Boiling Point (FBP) within 15 to 18 hours. All sequences are chained automatically. When the next step involves a pressure change, the sample flask charge is automatically cooled to a preset temperature and returned to atmospheric pressure. The operator may replace distillate receivers at any time, with empty ones before approving the continuation of the next step toward FBP. The fractions can be measured by temperature and/or % volume set points.

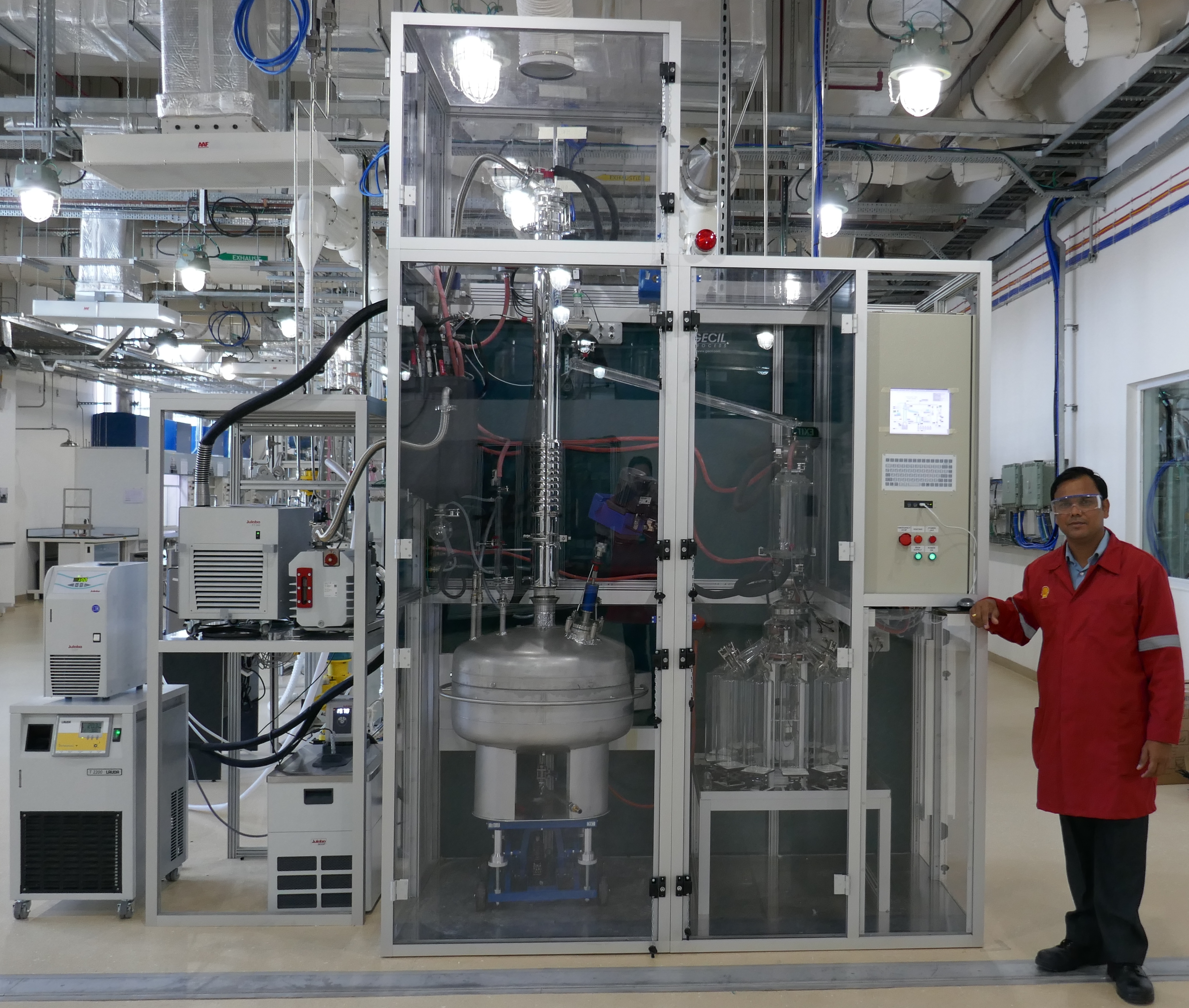

The MINIDIST PLUS type F process cabinet is a closed cabinet with safety doors for easy access and maintenance. Version V7.0 includes a built-in Linux industrial controller with interface process boards, color LCD display, industrial alphanumeric keyboard, and mouse. There is no longer a need for an external Windows PC supervisor.

BENEFITS

Automatic, ASTM D2892,TBP distillation units type  F with 50L to 200L capacity

No operator intervention from start to FBP 400 C AET

Up to 100 TBP analysis per year

Easy operation in local-mode

No need for an external PC to operate all functions of GECDIST V7 Software











>
