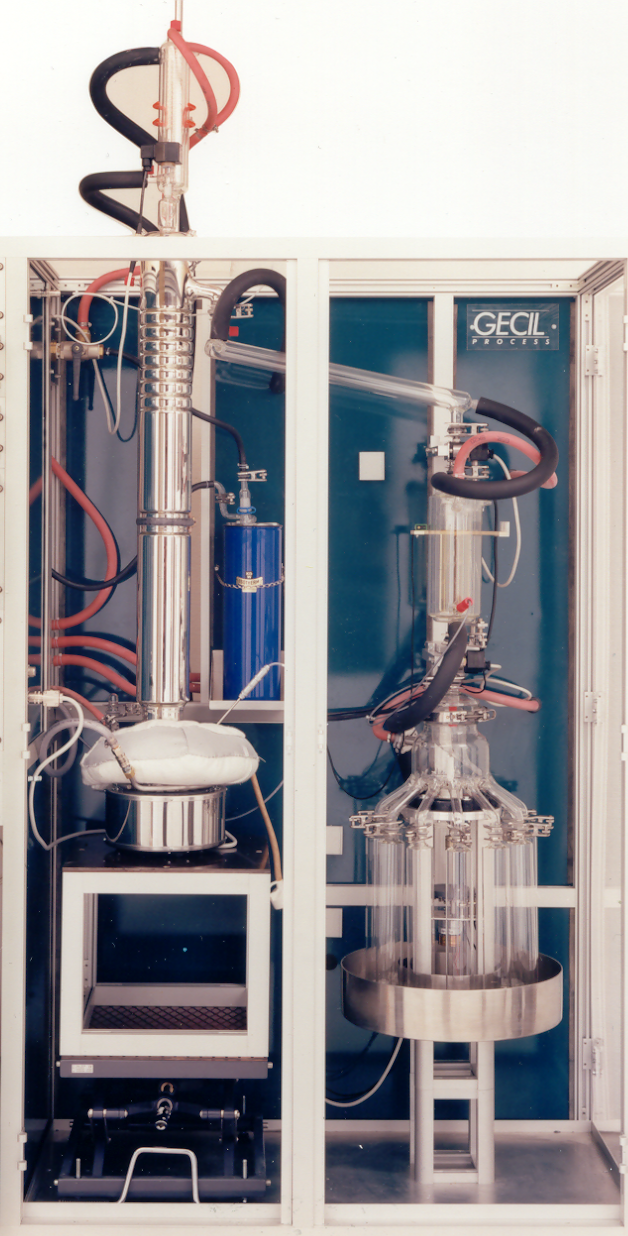

GECDIST V6 Type E D2892 semi auto and automatic

FEATURES

Automatic ASTM D2892 Apparatus.
Limited operator intervention from start to FBP, except to change collecting receivers
Models with 2L to 10L capacity glass flask
Automatic control from IBP to FBP
From debutanisation up to 410/425 C AET
Automatic Vacuum control down to 1.0 mmHG
Automatic fraction collector with 12 receivers
Run in °C or °F, in mmHg or mBar
Up to 20 distillation programs
Data storage of up to 50 distillation results
Local ticket label printer to print results
Display of curves
Optional Cryoplunger to avoid using dry ice
Optional stainless steel flask
Accessible cabinet for maintenance
External PC104 Rack 4U Controller

DESCRIPTION

Fully automatic ASTM D2892 unit for distillation of crude oils, bio-fuels or petroleum cuts, with automatic procedure from initial heating to reduced pressure.  No operator intervention up to the final boiling point (FBP) and automatic return to atmospheric pressure.

This unit can carry out all types of discontinuous distillation of chemical and organic components for boiling temperatures up to 200°C under atmospheric pressure or at vacuum down to 1.0 mmHg, the atmospheric equivalent temperature (AET) of 410/425°C or 770/800°F.

The operator controls the unit with all necessary functions: programming, results storage, run distillation display, diagnostic mode, and data transfer via RS232.

Version V6.0 benefits 20 years of improvements and a custom design program to access parameters at any moment.  Version V6.0 accommodates heavy and light oil, residues, difficult samples, and atmospheric runs. All the above features, without compromising safety during distillation.

The accessible external rack controller unit consists of:
A set of all electrotechnical elements necessary to activate the process elements: pump, heaters, electrovalves, motors, etc.
A built-in industrial Pentium PC with all necessary process interfaces and software to control the distillation unit. User friendly software, allowing operator control and distillation status visualization in local-mode.
All elements from the process cabinet are connected to the rear of the external rack controller, including probes, pressure sensors, follower stepping motor, optical sensors, and heating mantle.

BENEFITS

Affordable ASTM D2892 automatic TBP Distillation

for QC and Research laboratories

easy of usE
