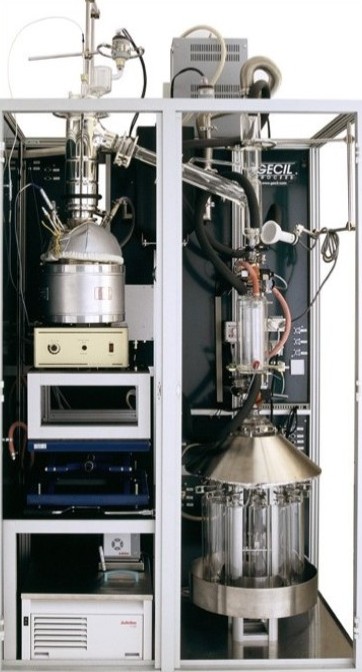

GECDIST V6 Type A D5236 semi auto and automatic 0.5L to 10L

FEATURES

Semi and automatic ASTM D5236 Apparatus

Limited operator intervention from start to FBP

Models with 2L to 10L capacity glass flask

Automatic control from IBP to FBP

From Atmospheric up to 560/580 C AET

Automatic Vacuum control down to 0.3 mmHG

Automatic fraction collector with 12 receivers

Run in °C or °F, in mmHg ot mBar

Up to 20 distillation programs

Data storage of up to 50 distillation résults

Local ticket label printer to print results

Display of curves

Optional Cryoplunger to avoid using dry ice

Optional stainless stell flask

Accessible rack controller  for maintenance

External PC104 Rack 4U Controller

DESCRIPTION

Fully automatic ASTM D5236 unit for distillation of lubricating oils, residues, asphalt, bio-fuels or petroleum cuts, with automatic procedure from initila heating to reduced pressure. No operator intervention up to the final boiling point (FBP) and automatic return to atmospheric pressure.

This unit can carry out all types of discontinuous distillation of chemical and organic components for boiling temperatures up to 250°C under atmospheric pressure or at vacuum down to 0.3 mmHg, the atmospheric equivalent temperature (AET) of 560/580°C 1040/1075°F.

The operator controls the unit with all necessary functions : programming, results storage, run distillation display, diagnostic mode, and data tranfer via RS232.

Titre

AFFORDABLE ASTM D5236 AUTOMATIC POTSTILL DISTILLATION

FOR QC AND RESEARCH LABORATORIES

EASY TO USE
